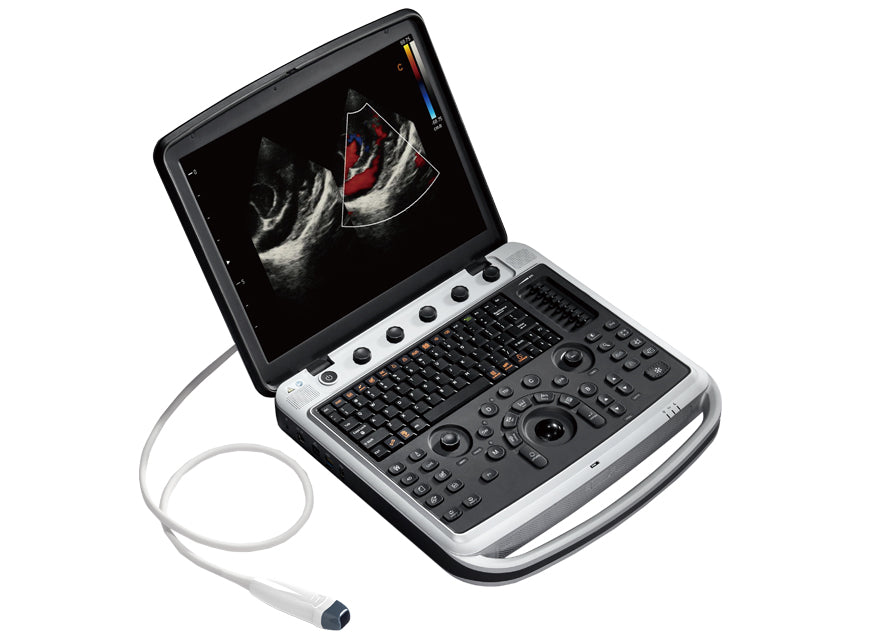

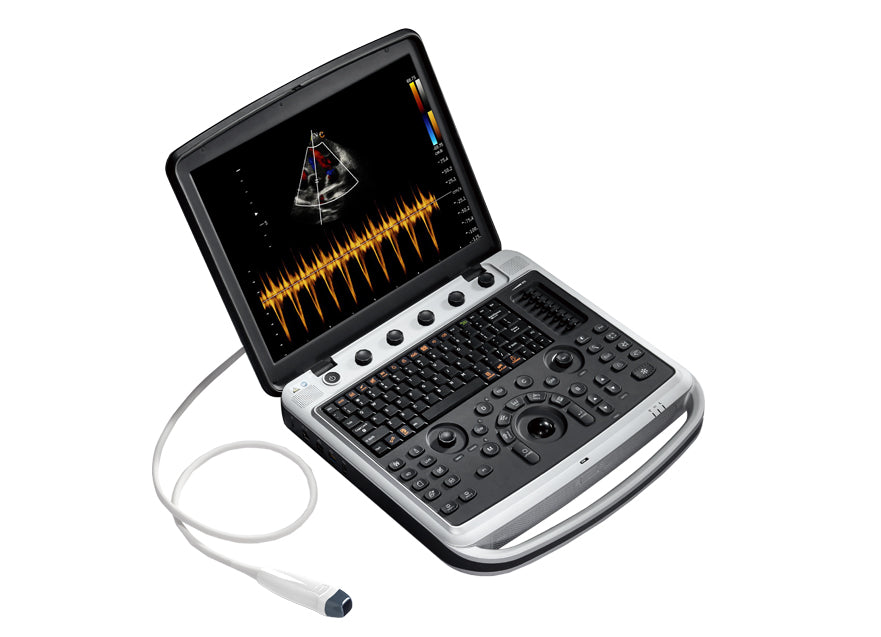

Portable Veterinary Color Doppler Ultrasound System SonoBook 6 VET

Light weight
1.Dimensions of main unit(approx.): 360mm*355mm*65mm
2. Net weight of main unit (approx): 5.5kg (with battery)

Material
Built with Aluminum metal material and easy to clean.

Operation Panel
1. 15 inch High resolution color LCD
2. Interactive backlit keys
3. Brightness adjustment
4. Angle adjustable: 0-120°
5. 8TGCSlides

Specifications
Detailed Standard Configuration
32G SSD(128G Optional), 1 active probe port, Pencil transducer port, ECG port, USB*3 X-Contrast, FHI, Q-Image, Q-flow, Q-beam, AIO (Automatic Image Optimization), Biopsy, One key for full screen view, Compound, SRA, Chroma, 2D Steer, Triplex mode, CW mode, Biopsy, Auto ambience adjustment, General measurement package

Options
2D Steer, Super Needle, UltraRemote Docking, Wifi, Trolley, External Battery, Triple transducer connectors, Carry Bag

Display Modes
B mode, B/M mode, M mode, Dual mode, CFM mode (Color Doppler Image), CPA mode (Power Doppler Image), DPD mode (Directional Power Doppler), PW mode (Pulse Wave Doppler), CW mode, TDI, Color M mode, B/BC mode, Trapezoidal imaging (only for linear transducer), Triplex mode, Quadplex mode

Applications
Abdomen, Cardiac, Kidney, Reproduction, Superficial, SMP etc.

Transducer Types
1. Convex transducer
2. Linear transducer
3. Trans rectal transducer
4. Micro convex transducer
5. Phased array transducer
6. Linear rectal transducer
