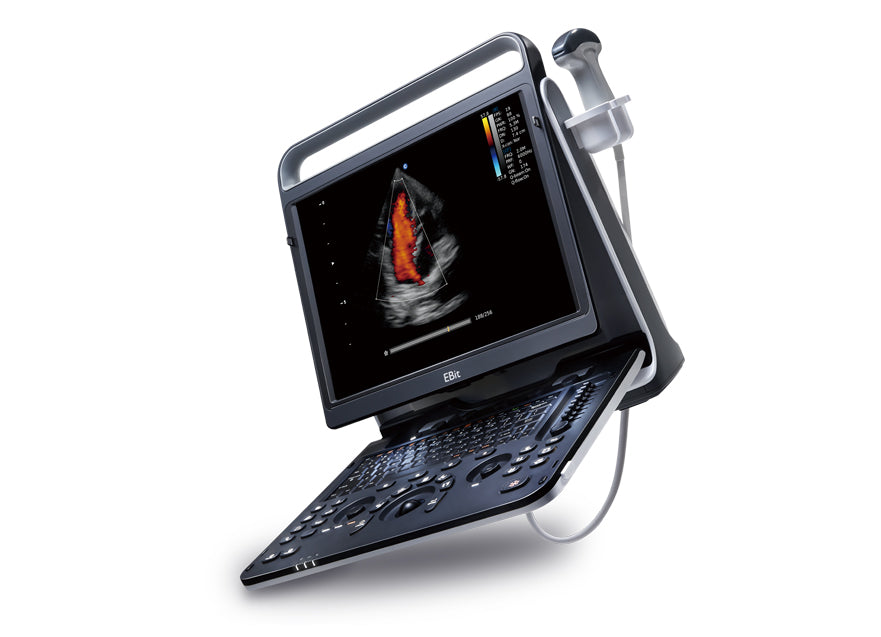

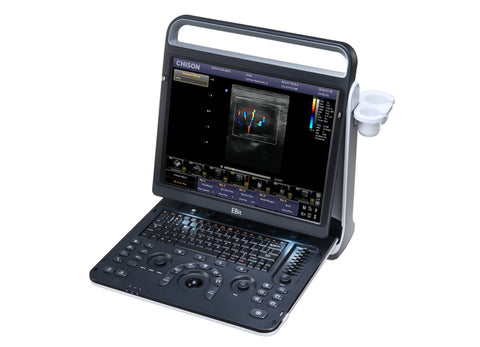

Portable Veterinary Color Doppler Ultrasound System EBit 60 VET

Light weight
1. Dimensions of main unit(approx.): 358mm（Length）×125mm（Width）×399mm
2. Net weight of main unit (approx): 7.8kg (no probe included)

Operation Panel
1. 15 inch High resolution color LCD
2. Interactive backlit keys
3. Brightness adjustment
4. 8 STC Slides

Specifications
Detailed Standard Configuration
2 active probe ports, Pulse Wave Doppler, USB ports : 4, Scan time:2 hr General measurement package, Clinical measurement packages, Multi-language screen display, AIO (Automatic Image Optimization), Intelligent Zoom, Speckle Reduction Algorithm (SRA), Q-Image software package, Full Screen

Options
DICOM (storage, print, worklist), Elastography, Super needle, CW, TDI, Color M, ECG, B/BC mode, 2D steer, Quadplex Mode Footswitch, Carrying case, Trolley, ECG cable

Display Modes
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, 2D Steer (option), CFM Mode, CPA Mode, DPD Mode, PW Mode, B/BC Mode (option), Triplex Mode, CW Mode (option), Color M Mode (option), Trapezoidal Mode

Applications
Abdomen, Cardiac, Kidney, Reproduction, Superficial, SMP etc.

Transducer Types
1. Convex transducer
2. Linear transducer
3. Phased array transducer
4. TransRectal transducer
5. Micro convex transducer
6. LinearRectal transducer
